SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station

Brand Name: NoEnName_Null

Certification: CE

Choice: yes

Current: 30A Max

Current type: DC

Hign-concerned Chemical: None

Is Smart Device: No

Maximum Current: 30A

Model Number: PWM

Origin: Mainland China

Voltage: 12V 24V Auto

is_customized: Yes

semi_Choice: yes

Note : This controller is only suitable for various lead-acid batteries (including openings, seals, gels, etc.), please do not use it to charge other batteries (including lithium batteries, nickel-metal hydride batteries, etc.)

Descriptions:

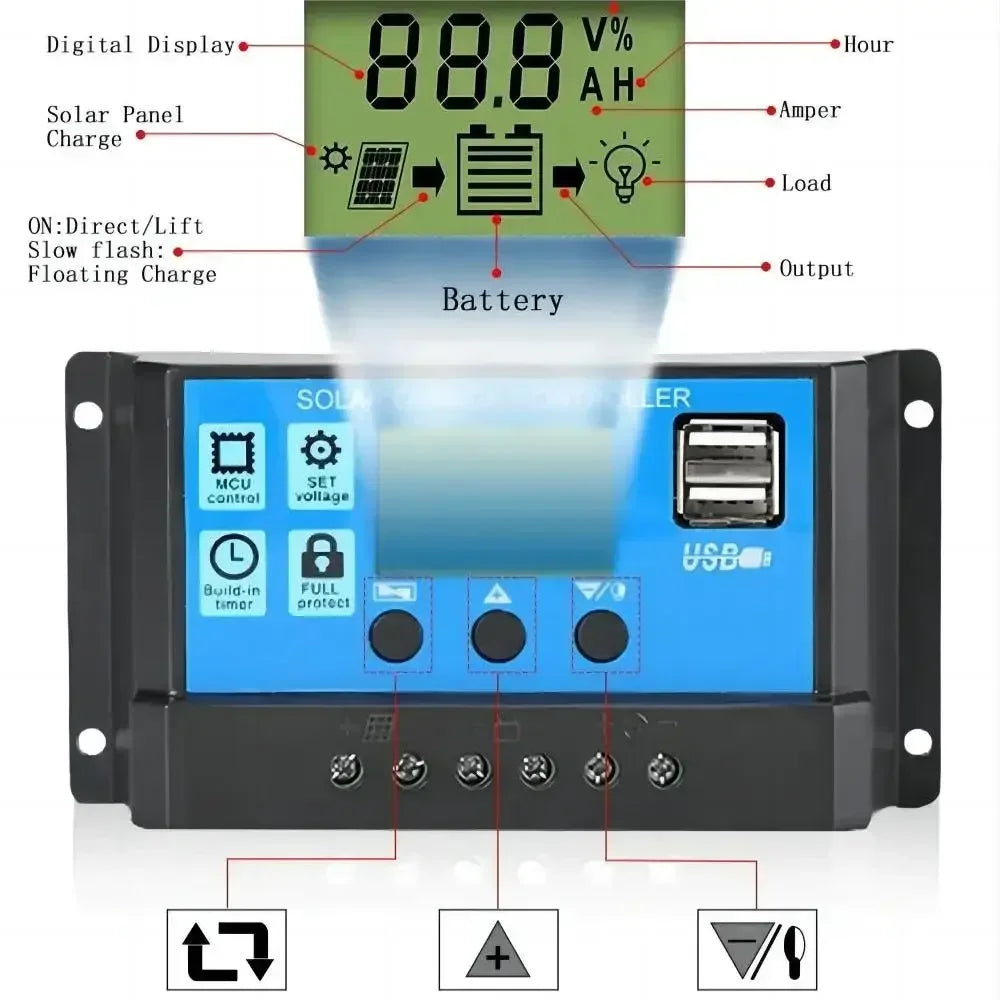

The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business. Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.

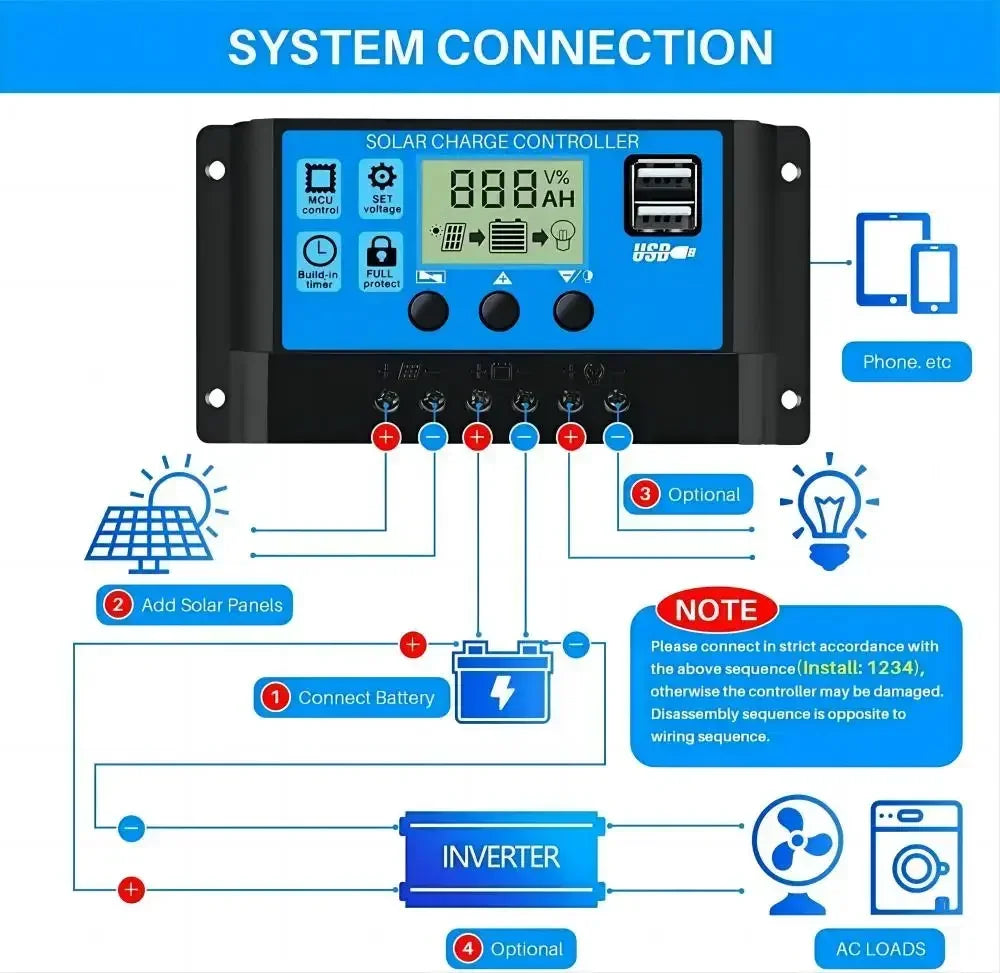

*The reverse order applies when deinstalling!

*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain

There are optional 10A 20A 30A model:

10A:

battery(12V):the max solar panel input is 25V 120W

battery(24V):the max solar panel input is 50V 240W

20A:

battery(12V, the max solar panel input is 25V 240W

battery(24V, the max solar panel input is 50V 480W

30A
